Architectural notes

• RV32/64I (I for base integer ISA) has 32 general purpose registers, not including pc, denoted as x0 to x31. x0 is a null-register which is always zeroed.
• RV32/64E (E for base integer embedded ISA) has half the count, at 16 GPRs.

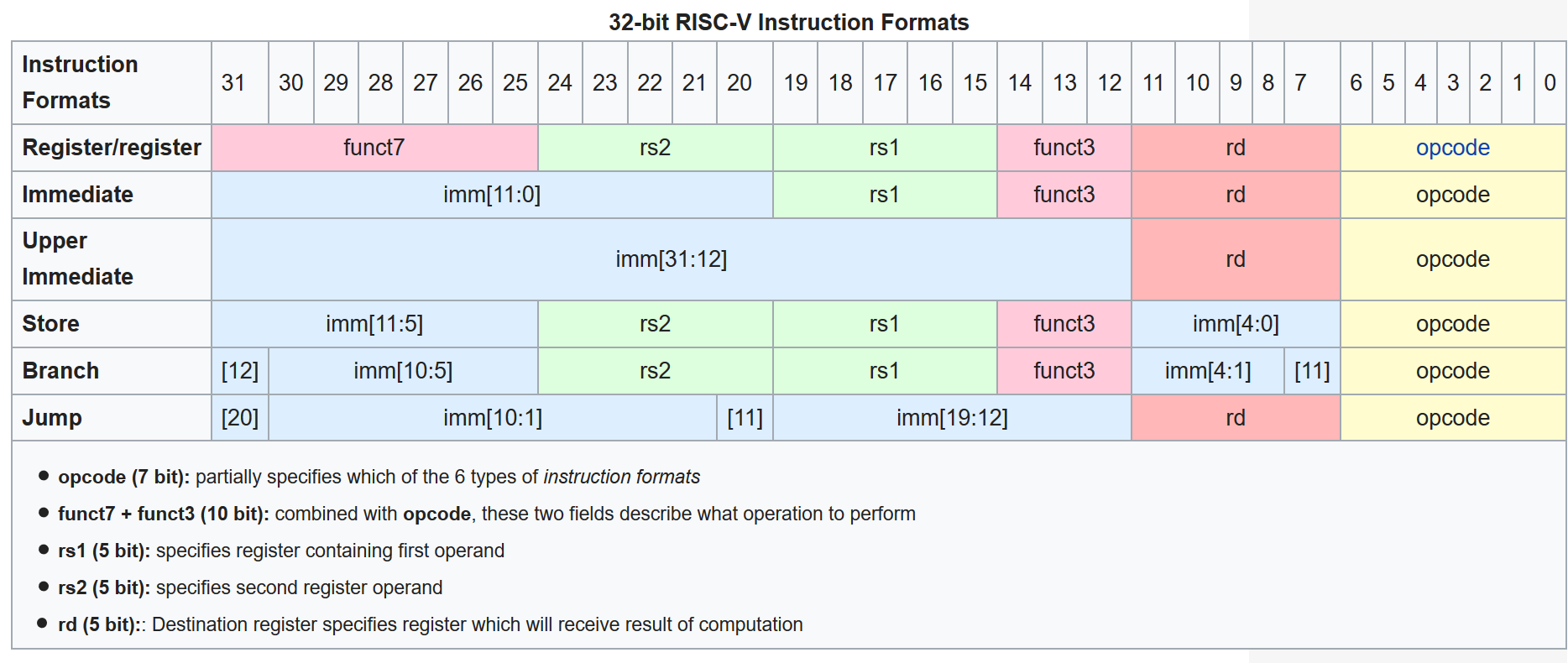

• The different instruction formats are constructed somewhat-aligned to the R-type format; observe:

R-type contains fundamental fields which exist at their position in each subsequent format, unless replaced with an immediate specifier. The immediate specifiers (such as imm[19:12]) appear scrambled, but their indices correlate with similar indications in prior, i.e. J-type's imm[10:1] is contained within I-type's imm[11:0], and similarly for other types except the U-type format, which represents the upper half of an immediate. Keep in mind this is a hardware-level optimisation to minimise fan-out, as it preserves the ability to carry-through logic lines (?) across different formats since they share fields at the same positions. Same reasoning applied to the fundamental rd/rs*/etc. fields. - XLEN refers to the integer register width (either 32 or 64 bits,) unrelated to word size, which is 32 bits regardless.

Programming notes

• Emulation state should store a reference to GPRs with the consideration that there may be 16 or 32
• For making a generic instruction base struct, the only reasonably optimal solution is creating a union across the different formats, enabling access semantics as insn.j.imm__19_12. Separating the formats into different structs may complicate type genericity further down the line.
